SAE J595 · IP69K · 13 Flash Patterns

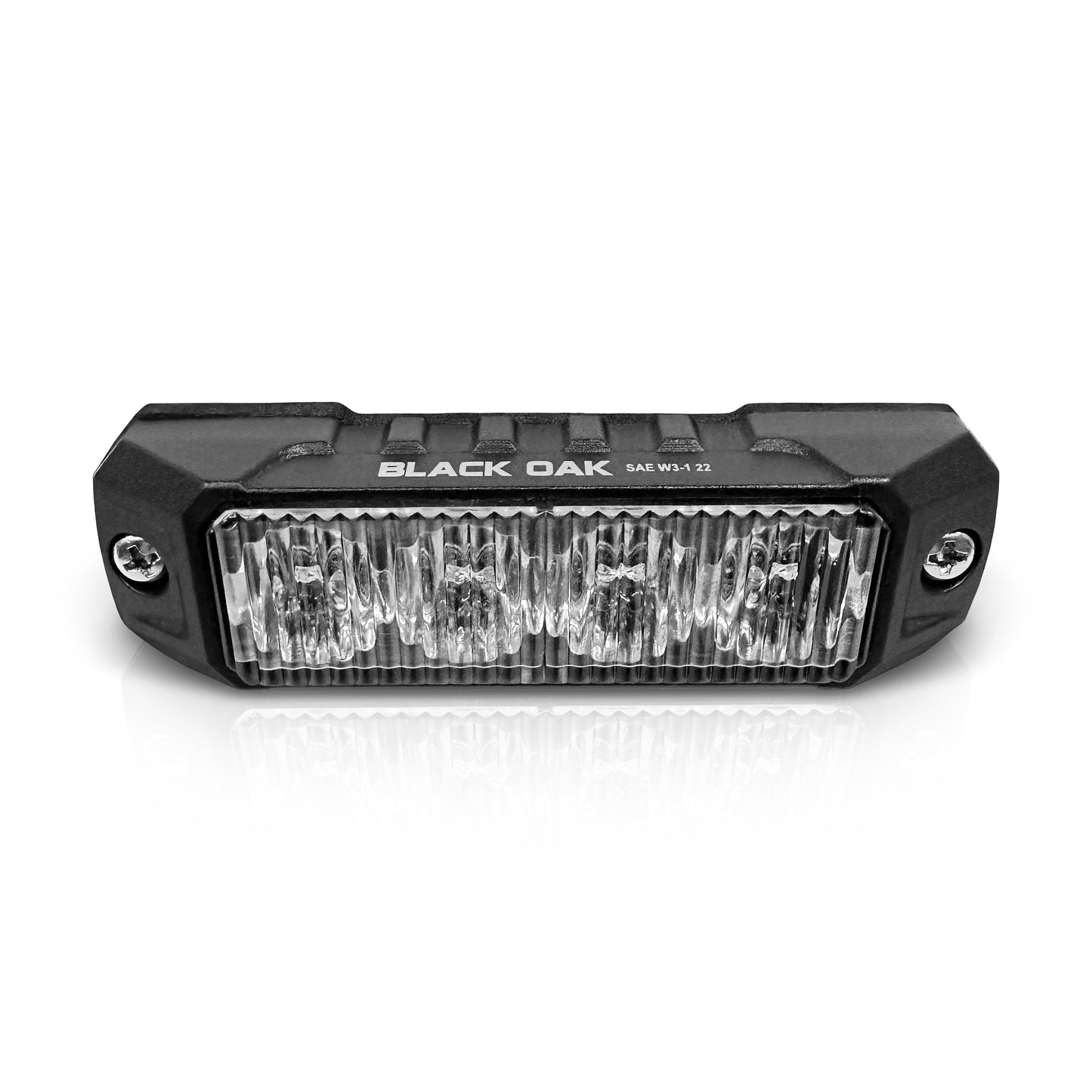

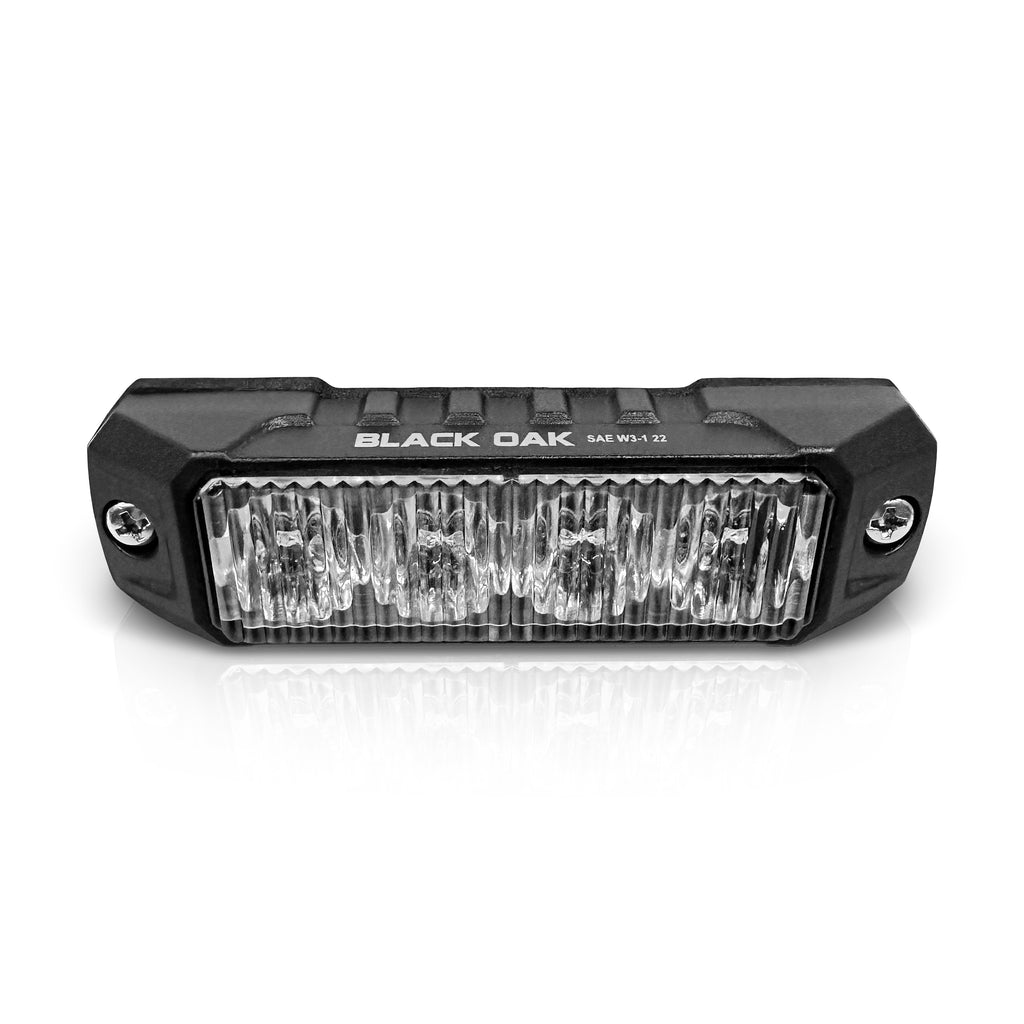

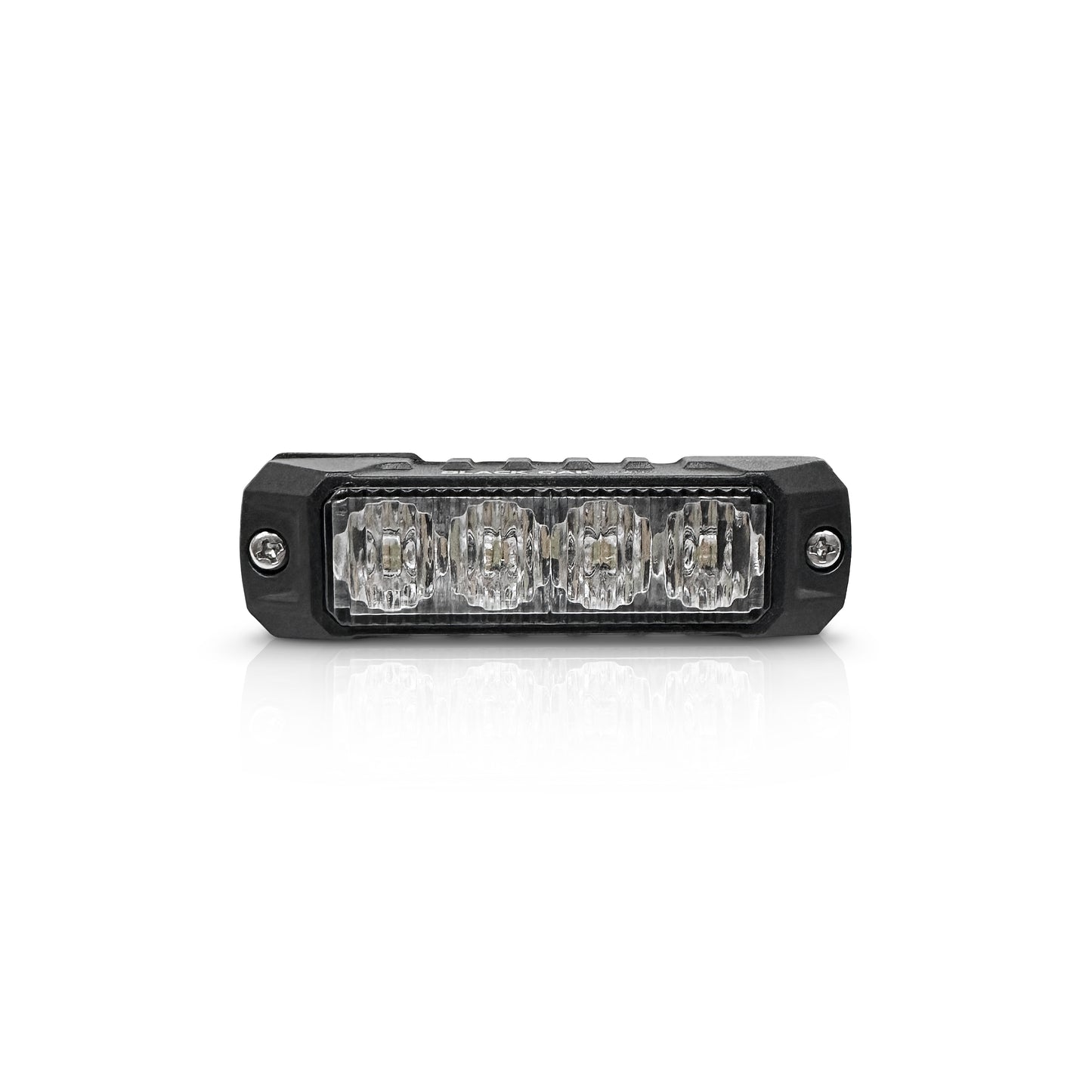

XDR-4 Emergency Strobe Light
A compact 4" LED warning light for tow trucks, utility, construction, and emergency response vehicles. Four high-intensity LEDs throw a 120° wide warning pattern, the ultra-low-profile housing fits where bigger strobes won't, and it's sealed to IP69K for pressure washing and all-weather use.
SAE J595IP69K Waterproof10–30V DCSync CapableLimited Lifetime Warranty
13Flash Patterns
120°Wide Angle
IP69KWaterproof
3-7/8"Long

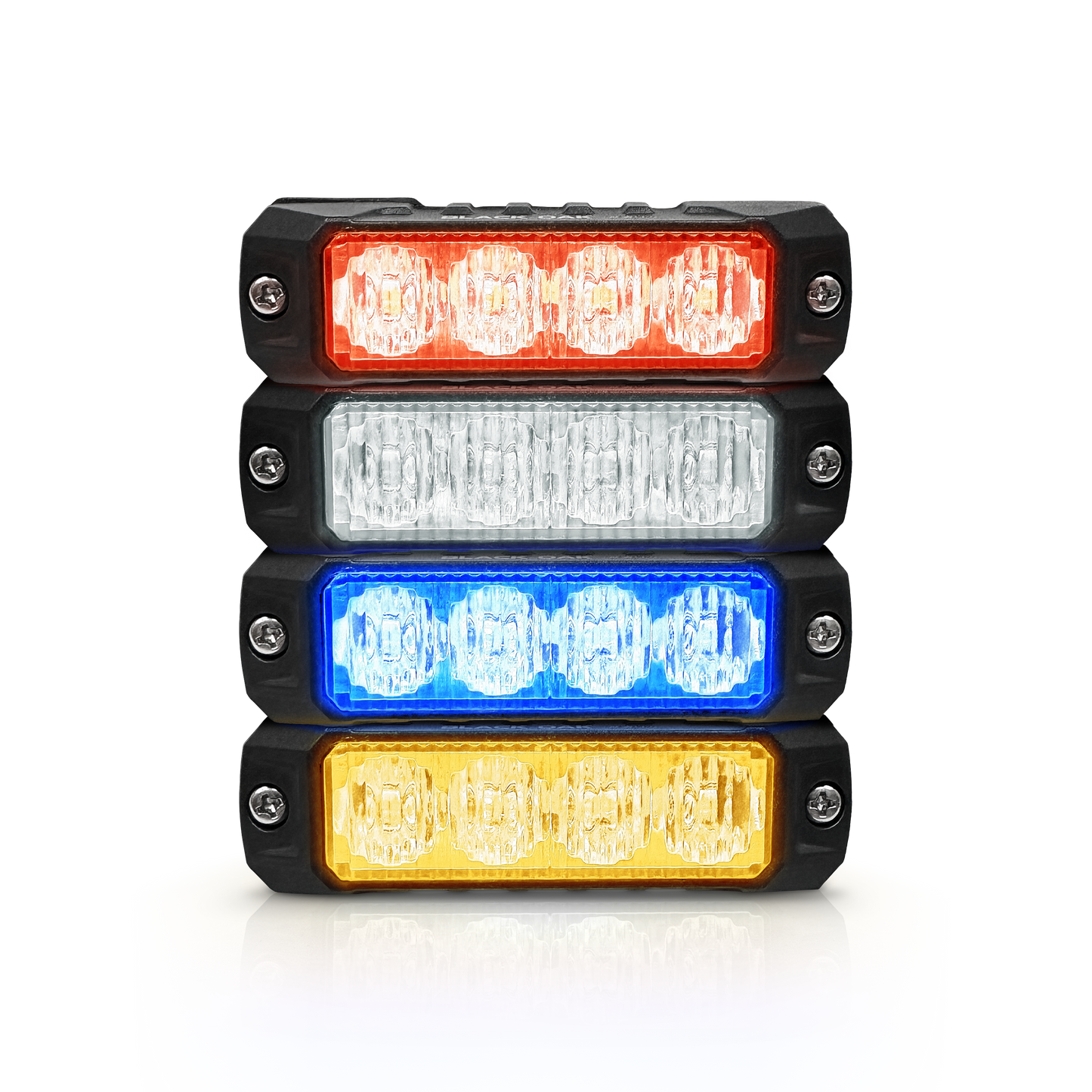

Pick Your Colors
7 single and dual-color options
Run one color or split two in the same head. Dual-color models alternate between both colors for maximum attention.

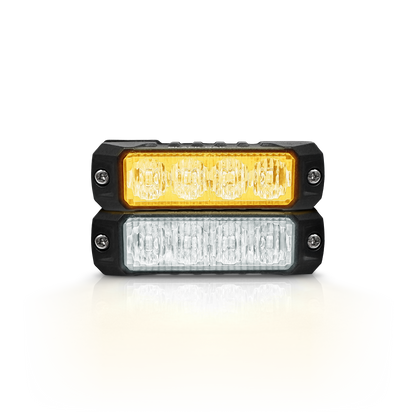

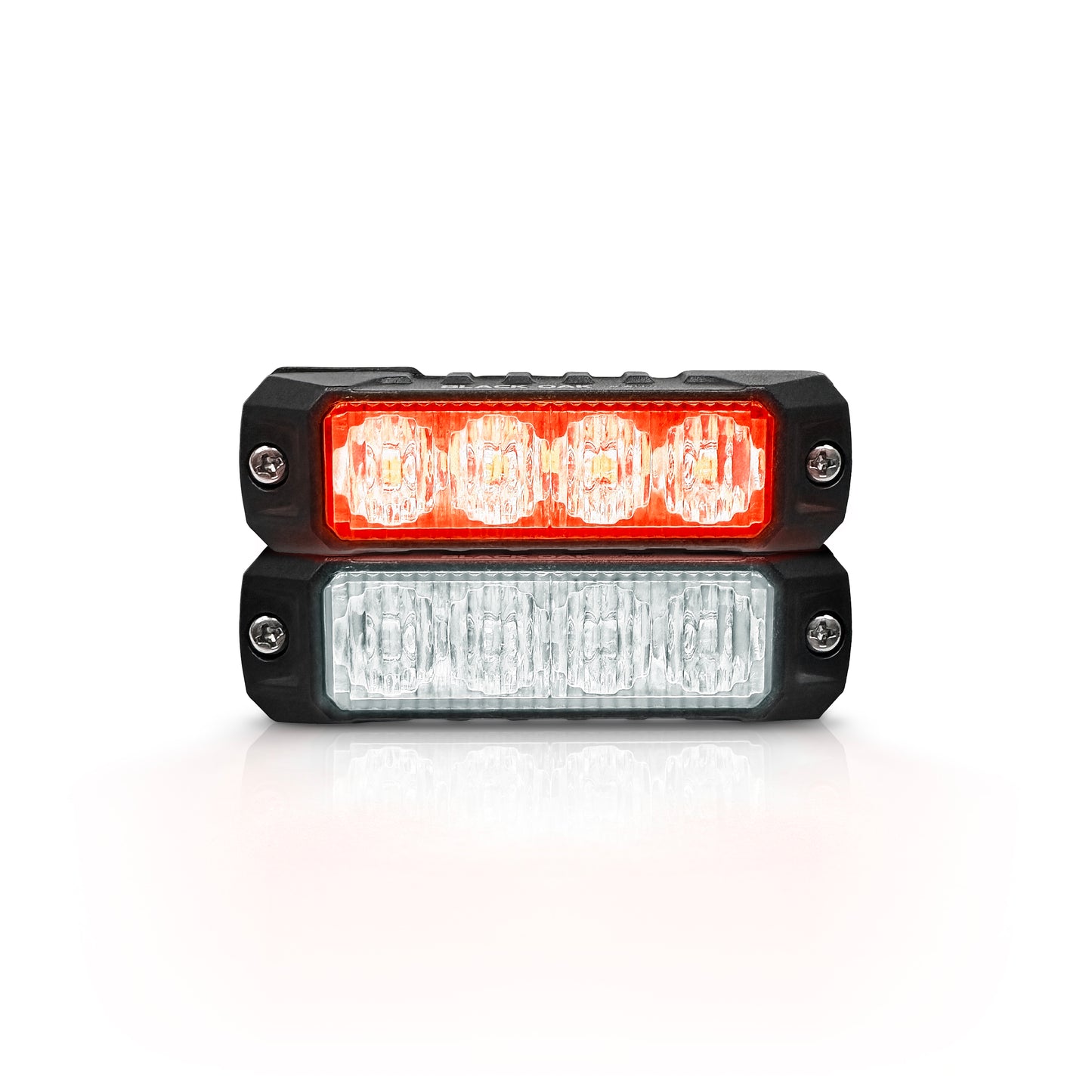

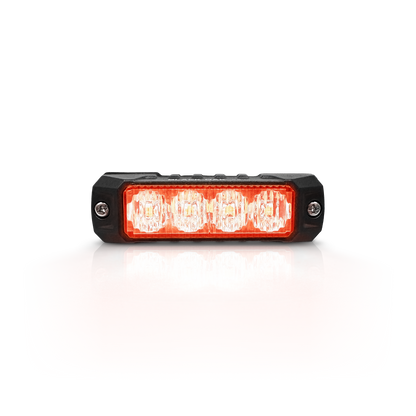

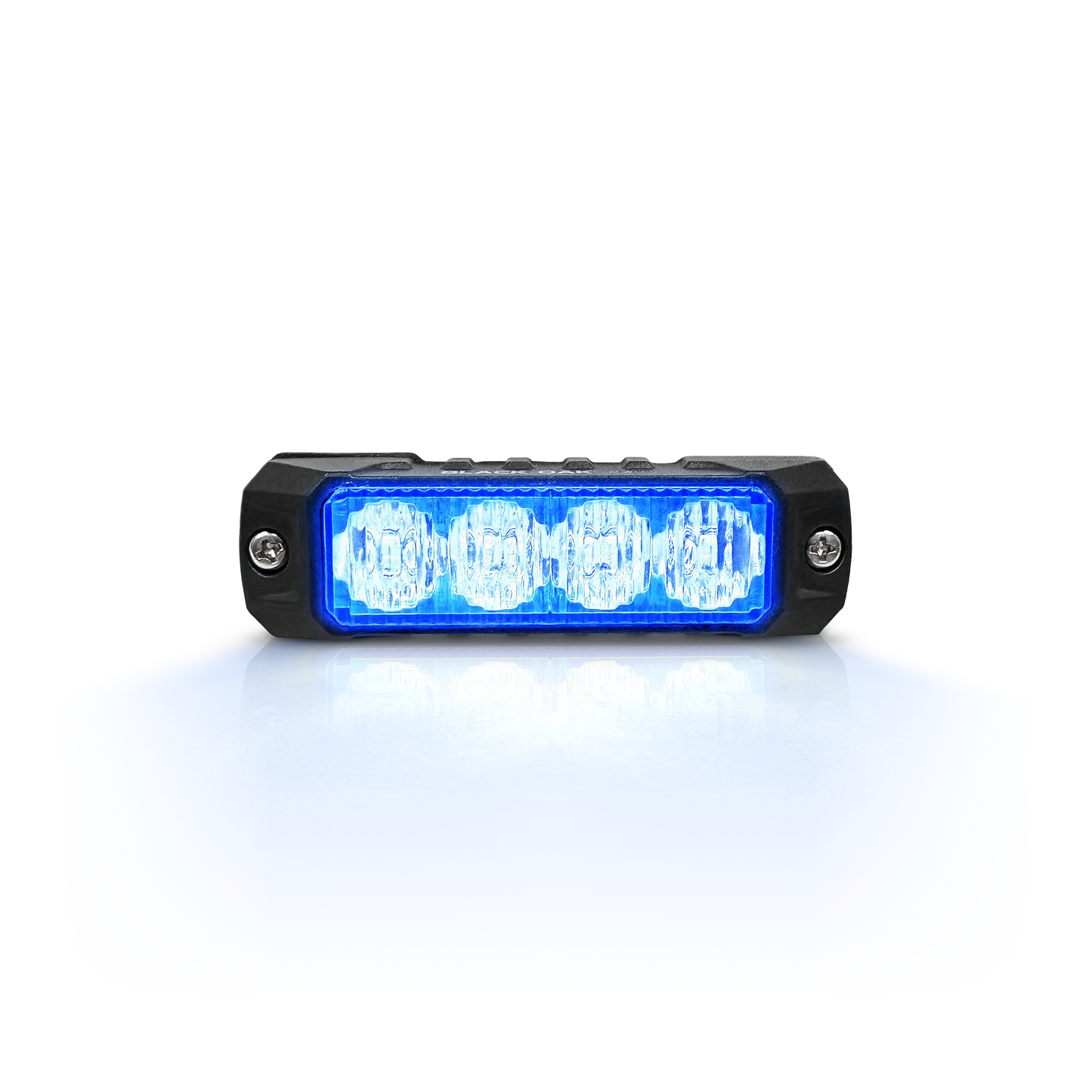

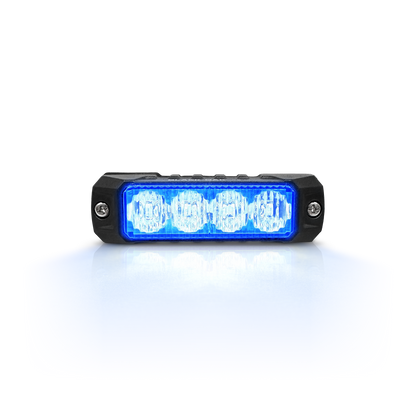

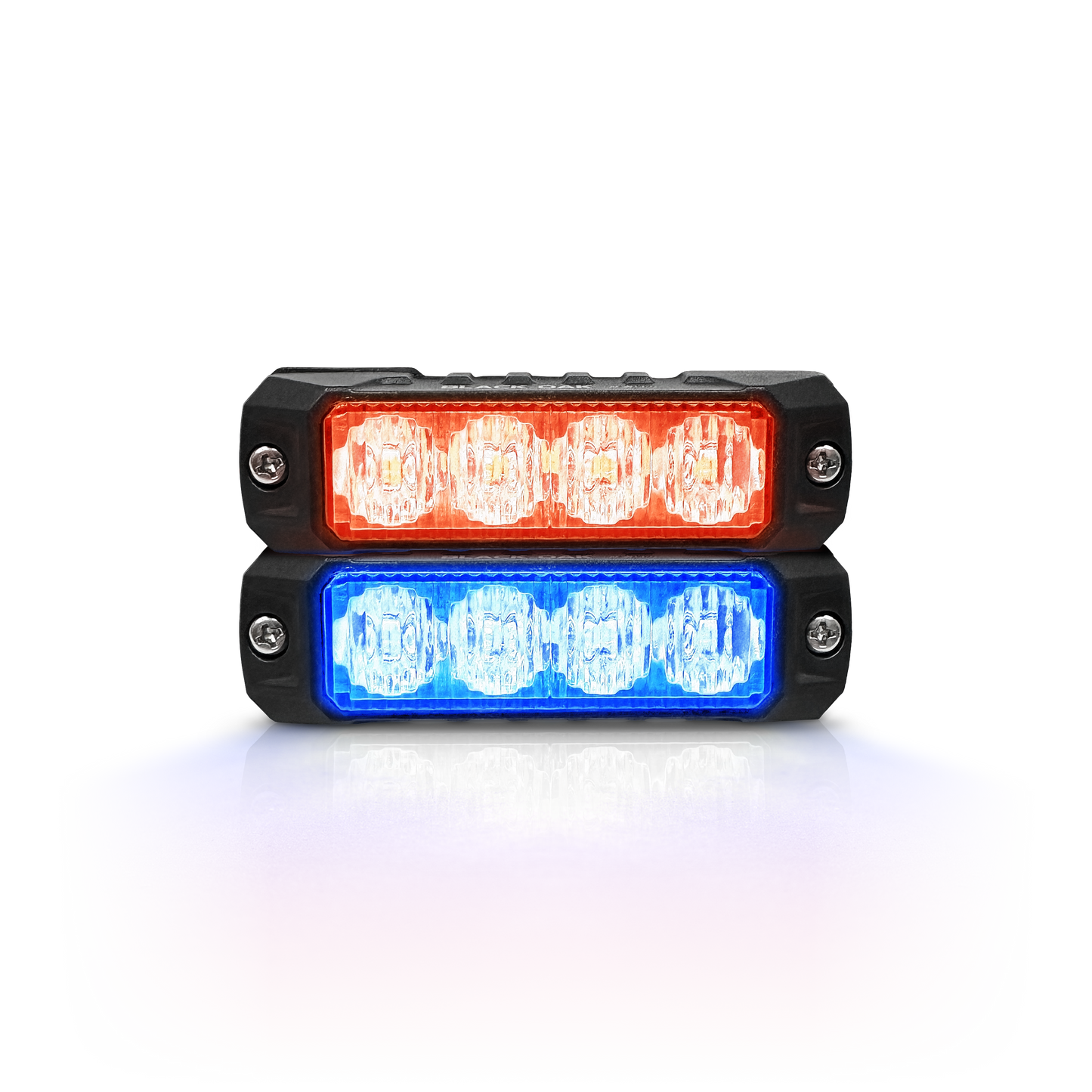

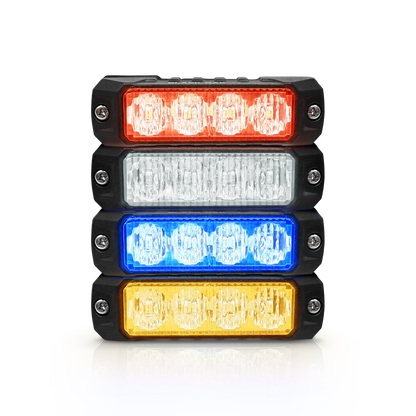

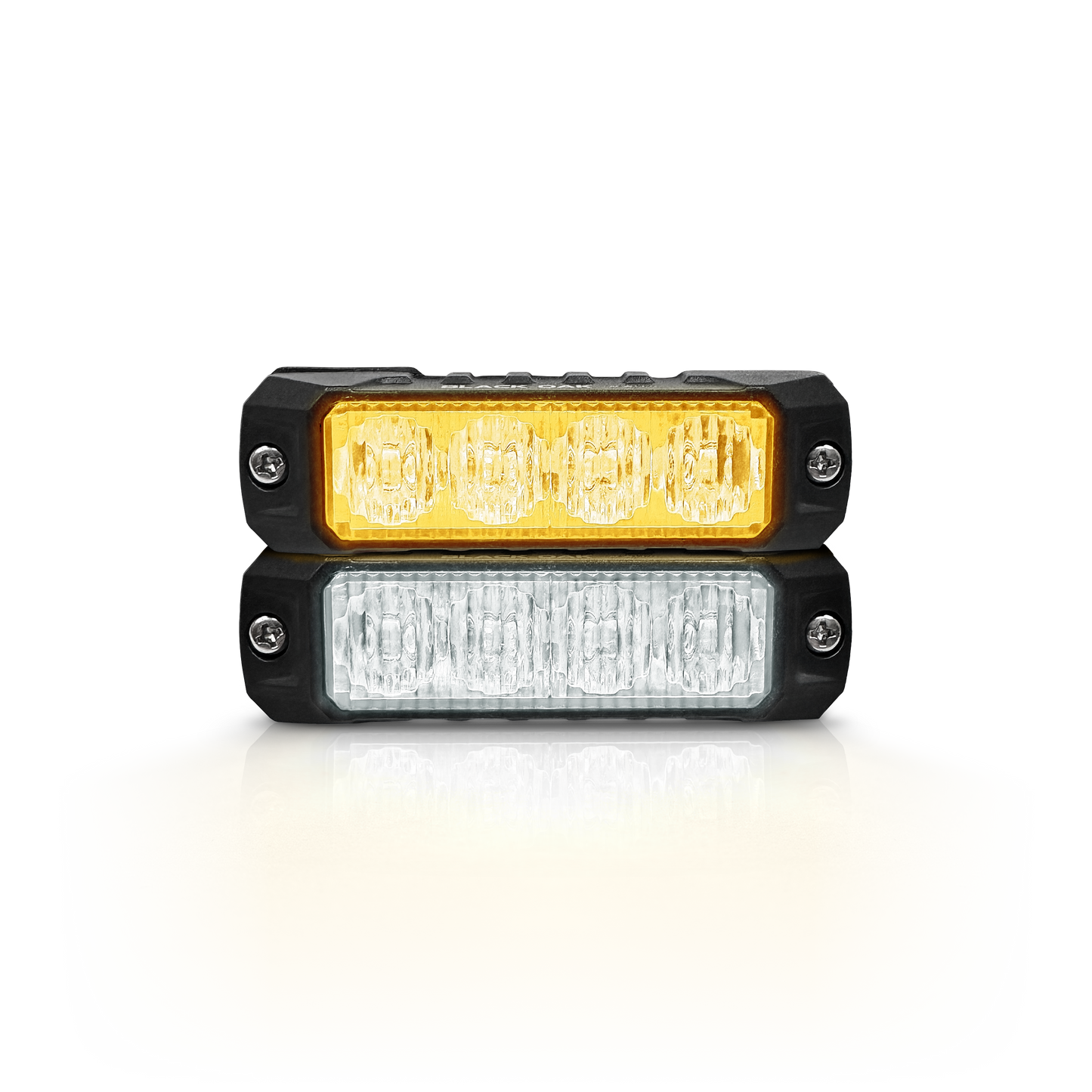

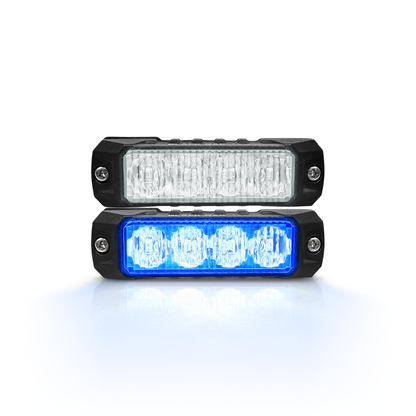

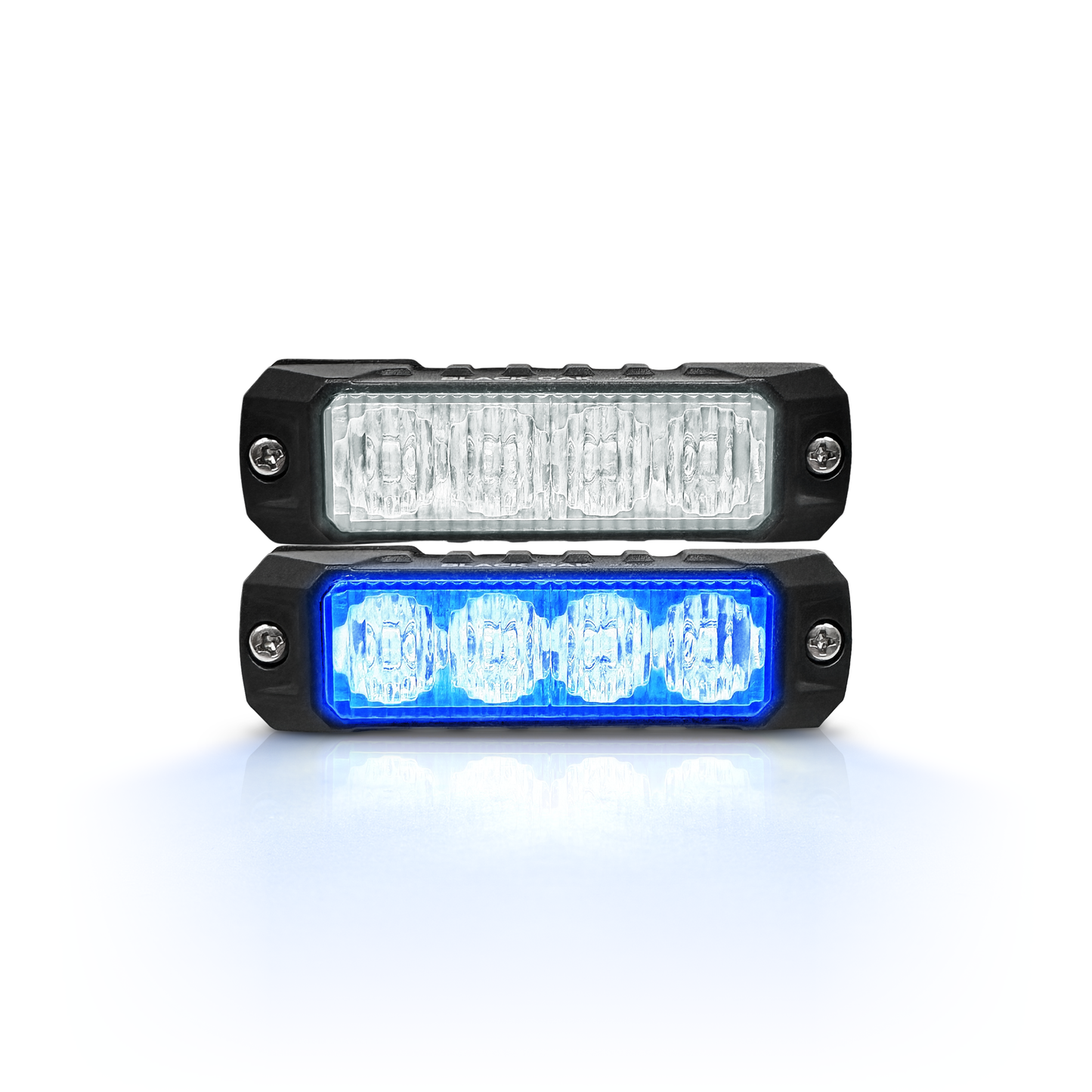

Amber Blue Red Amber & White Blue & White Red & Blue Red & White Built For The JobCompact strobe, full warning power
SAE J595 Approved
Meets the SAE standard for directional flashing warning lamps on emergency and service vehicles.
13 Patterns + Sync
Steady-on plus 13 strobe patterns. Sync multiple units to flash together or alternate side to side.
12V or 24V
Runs on 10–30V DC, so it works on pickups, service bodies, and heavy trucks with no changes.
Ultra Slim, Stealthy Design

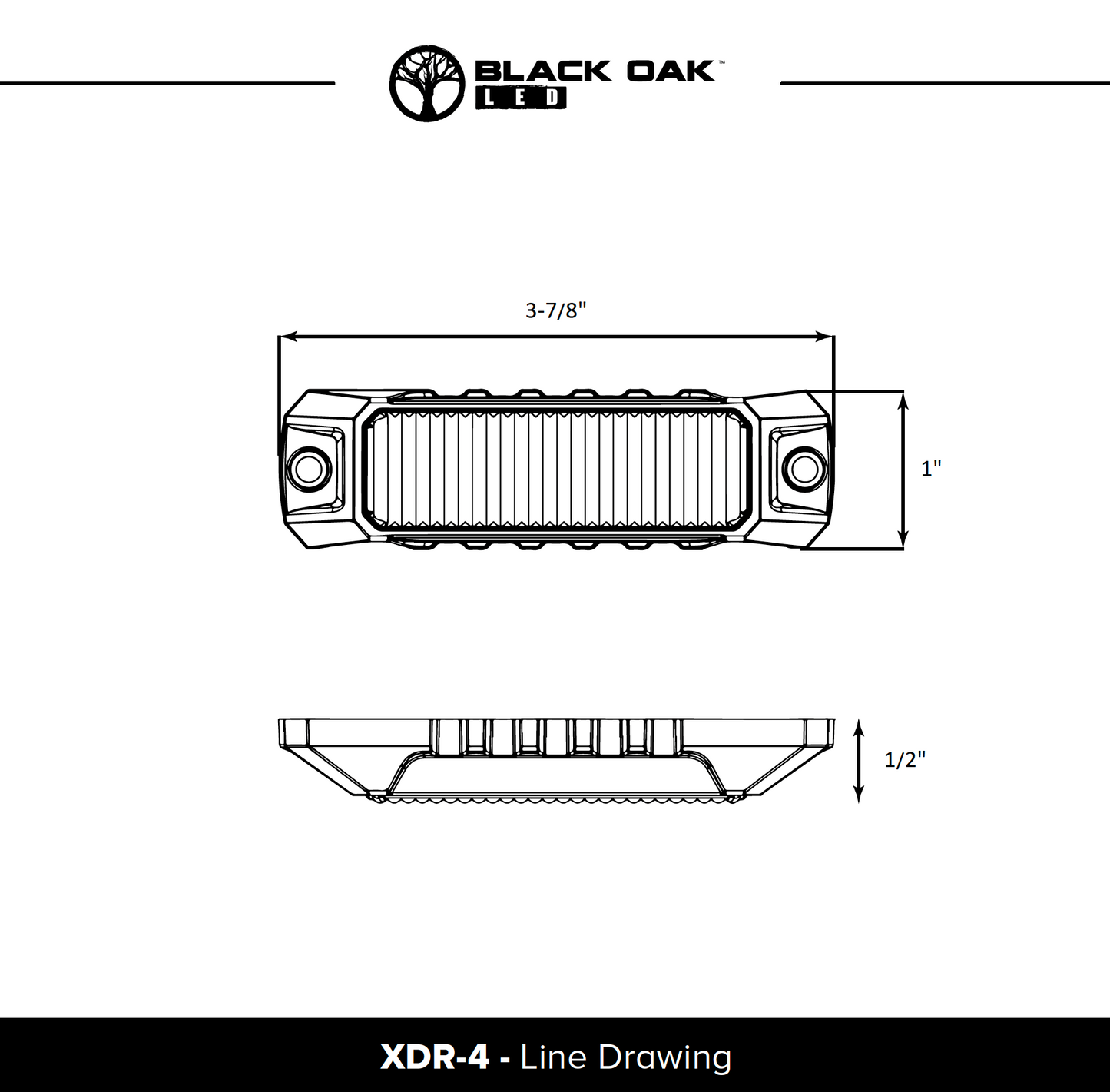

At just 3-7/8" long, the XDR-4 fits the tightest spots in grilles, bumpers, deck lids, and headache racks, and gives you a clean, modern look. It surface mounts with two M4 bolts and a vibration foam pad. Need to mount it sideways? Add our 90° mounting bracket.
Powerful Warning Output
Four high-intensity LEDs push 20W through an ultra-wide 120° pattern that stays visible day and night. Choose from 13 flash patterns or steady-on, and sync multiple heads for a coordinated, professional warning setup on any vehicle.
Rugged & Waterproof
Sealed to IP69K and rated from -40° to 145° F, the XDR-4 shrugs off rain, road salt, dust, and the pressure washer. It's built to run shift after shift in the conditions work trucks actually see, and it's backed by our limited lifetime warranty.
Power & Performance
| Wattage | 20W |
|---|---|
| Amp Draw | 1.6A |
| Operating Voltage | 10–30V DC |
| Certification | SAE J595 |
| LEDs | 4 high-intensity |
| Beam | Ultra wide, 120° |
| Modes | Steady on + 13 strobe patterns, sync capable |
Durability & Warranty
| Waterproof Rating | IP69K |
|---|---|
| Operating Temp | -40° to 145° F (-40° to 62° C) |
| Life Expectancy | 50,000 hours |
| Warranty | Limited lifetime |
| Guarantee | 30-day money back |
Wiring & Installation
| Lead Length | 12" |
|---|---|
| Wire Gauge | 24 AWG |
| Connector | Open-end pigtail |
| Harness Included? | No |
| Recommended Fuse | 5A |
| Mounting | Surface mount, 2× M4 bolts + foam pad (included) |
General & SKUs
| Length | 3-7/8" |
|---|---|
| Weight | 0.1 lb |
| Single Color | XDR-4S-A · XDR-4S-B · XDR-4S-R |
| Dual Color | XDR-4S-AW · XDR-4S-BW · XDR-4S-RB · XDR-4S-RW |
With 12" 24 AWG pigtail Vibration Foam Insert
Cushions the light against the mount 2 × 1-1/2" M4 Bolts
With washers and nuts Instructions
Wiring and setup steps
Is the XDR-4 SAE approved?
Yes. The XDR-4 is SAE J595 approved for directional flashing warning lamps. Rules on which colors you can run vary by state and vehicle type, so check your local regulations, especially for red and blue.
Will it work on a 24V truck?
Yes. It runs on anything from 10V to 30V DC, so 12V and 24V systems both work with no changes.
Can I sync multiple XDR-4 lights?
Yes. Wire multiple heads together to flash in unison or alternate.
Does it come with a harness or switch?
No. Each light has a 12" open-end pigtail that you wire to your own switch and a 5A fuse.
How do I mount it?
It surface mounts on any flat spot with the included M4 bolts and vibration foam pad. To mount it at a right angle, add the XDR-4 & XDR-5 90° mounting bracket.
What does the warranty cover?
Our limited lifetime warranty covers workmanship and material failures. Send the light back and once we verify the issue, we'll repair or replace it free of charge. Every order also comes with a 30-day money-back guarantee.
