LED Light Bars  /  10 Inch

10 Inch LED Light Bars

The compact bar for ATV and UTV bumpers, tractors, boat bows and extra work light next to a bigger main bar, in single row, double row, white marine and red or green hunting versions.

  • 13,200Raw lumens, double row
  • IP69KSealed housing
  • 12V / 24VPlug-and-play
  • LifetimeLimited Warranty
Shop 10 inch bars Kits for my vehicle
Black Oak LED 10 inch double row LED light bar with silver mounting brackets on wet gravel

Before you buy

Will it fit?Double row needs 11-13/16 in. bracket to bracket, single row 13-1/4 in. UTV bumpers, racks and bows.Fit guideSingle or double row?Single row is slimmer for grilles, racks and T-tops. Double row puts out twice the raw lumens.FAQIs the wiring included?Yes. 12 ft harness, switch, relay and fuse, plus brackets and hardware.In the box
Filter Filter
Reset

Filter

Filter

20 products

Remove all

20 products

10 Inch LED Light Bars

10 inch light bar guide

Fit, mounting and wiring for a 10 inch light bar

Everything buyers ask us before ordering a 10 inch bar, answered with the real measurements, the wiring diagram and the numbers from our spec sheets. The short version: measure the flat span, pick single row for the slimmest profile or double row for maximum output, and everything you need to wire it is in the box.

Will it fit?

Measure the flat span where the bar will sit, bracket to bracket. The 10 inch single row needs 13-1/4 in. and the double row needs 11-13/16 in. Common spots are an ATV or UTV bumper, a truck bumper opening, a roof or headache rack, a tractor cab and the bow of a small boat. The vehicle kits below are pre-fit to their model years.

10 inch single row LED light bar dimension drawing
10" single row: 13-1/4 in. wide with brackets, 11-7/8 in. housing, 2-9/16 in. tall, 3-1/4 in. deep.
10 inch double row LED light bar dimension drawing
10" double row: 11-13/16 in. wide with brackets, 11-7/16 in. housing, 4-1/8 in. tall with bracket, 3-1/2 in. deep.

How it mounts

Every bar bolts down with the stainless end brackets and hardware in the box. The bracket rotates so you can aim the beam after it is mounted. For tubes and rails, add a universal clamp bracket.

ATV, UTV or truck bumperThe single row keeps a slim 2-9/16 in. profile; the double row puts 13,200 raw lumens in a bar under 12 in. wide.
Roof rack, headache rack or tractor cabBolt to a crossbar with the included brackets. Our universal tractor kit pairs two 10 inch double rows, forward or front and back.

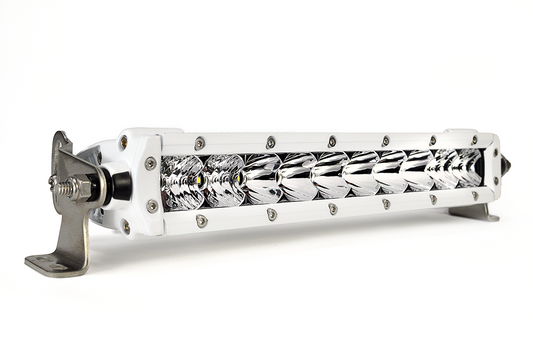

Boat bow, T-top or duck boatMarine bars in white housing, IP69K sealed for saltwater and washdown. Aim forward for running, down for docking and the deck.
Work, rear or fill lightAdd a 10 inch alongside a larger main bar for work sites, ranch use, plowing or extra light behind the vehicle.

What's in the box

Nothing else to buy for a standard install. You will need a drill, a pencil and zip ties.

  • 10 inch LED light bar with 16 in. lead and 2-pin Deutsch connector
  • 12 ft wiring harness
  • On/off rocker switch
  • Relay and inline fuse
  • 316 stainless end mounting brackets
  • All mounting hardware
  • Vehicle kits add the model-specific bracket

Wiring diagram

The harness is plug-and-play: connect the red lead to the battery positive, the black to the negative, run the switch into the cab and plug the bar into the Deutsch connector. The relay keeps the full load off your switch.

Download the quick start guide (PDF)

Light bar wiring diagram Battery positive runs through the inline 10A fuse to the relay. The in-cab on/off switch triggers the relay, and the relay powers the light bar through the 2-pin Deutsch connector. The relay and the light bar ground to the battery negative or a clean chassis ground. GROUND: battery negative or clean chassis ground BATTERY 12V or 24V +− 10A FUSE RELAY included ON/OFF SWITCH in cab, 3/4 in. hole trigger Deutsch 2-pin 10" LIGHT BAR Harness: 12 ft, fuse, relay and switch included Lead from bar: 16 in. to 2-pin Deutsch powergroundswitch trigger
Factory upfitter switchesWiring into a Ford, Ram or GM upfitter switch? Skip our relay and connect directly; the upfitter circuit already has one.
Keep it watertightUse heat-shrink butt connectors or solder sleeves on any splice. The Deutsch connector can be cut off if you need a custom run.
Route it cleanZip-tie the harness away from heat, sharp edges and moving parts. Mount the switch where you can reach it seated.

Brightness & beam

Figures are for our 5W LED builds, the brightest version of each bar. Combo optics put a 15° spot down the center for distance and 45° flood on the sides for width; spot and flood-only versions are available on the single row and double row bars. 6,000K color temperature, rated for 50,000 hours.

10" double row, 100W
13,200 lm
10" marine double row, 100W
13,200 lm
10" single row, 50W
6,600 lm
LED light bar beam pattern guide comparing spot, flood and combo beam shapes
Illustrated beam shapes, not measured light output. Tap to enlarge.

10 inch light bar specs

5W LED builds where offered; the red and green hunting bars are 60W only. Every bar: IP69K sealed, 12V and 24V DC, 50,000-hour rated life, -40° to 145°F, OSRAM LEDs, Lifetime Limited Warranty. White bars are 6,000K.

Every number here is the 5 Watt build. It is our highest-output version and the one we recommend. Many bars also come in a lower-priced 3 Watt build; compare both on the product page.

BarWattageRaw lumensLEDsSize with bracketsWeight
10" single row50W6,6001013-1/4 x 2-9/16 x 3-1/4 in.2.6 lb
10" double row100W13,2002011-13/16 x 4-1/8 x 3-1/2 in.3.8 lb
10" marine single row50W6,600See product page13-1/4 x 2-9/16 x 3-1/4 in.See product page
10" marine double row100W13,2002011-13/16 x 4-1/8 x 3-1/2 in.3.8 lb
10" red or green hunting double row60W7,5002011-13/16 x 4-1/8 x 3-1/2 in.See product page

Kits for your vehicle

Bar and bracket in one order, pre-fit to the model years listed.

Ford F-250 / F-35010 inch kit for 2017 to 2025 Super DutyPolaris Ranger10 inch double row kitTractorsUniversal kit with two 10 inch double rowsBoatsWhite marine barsAny other vehicleUniversal brackets and clamps

10 inch LED light bar questions

What is the brightest 10 inch light bar Black Oak makes?

The 10 inch double row is the brightest, at 100W and 13,200 raw lumens on 5W LEDs. The 10 inch single row is 50W and 6,600 raw lumens.

Will a 10 inch light bar fit my vehicle?

Measure the flat span where the bar will sit, bracket to bracket. The 10 inch single row needs 13-1/4 in. and the double row needs 11-13/16 in. Common spots are an ATV or UTV bumper, a truck bumper opening, a roof or headache rack, a tractor cab and the bow of a small boat. The vehicle kits below are pre-fit to their model years.

Single row or double row?

Single row when height is the constraint (behind a grille, on a roof rack, under a boat T-top) or when you want the slimmest look. Double row when the position has room and you want the most output from one bar, twice the raw lumens of the single row.

Does a 10 inch light bar come with a wiring harness and switch?

Yes. Every 10 inch bar ships with a 12 foot harness that includes the on/off switch, relay and inline fuse, plus stainless brackets and mounting hardware. It plugs into the bar's 2-pin Deutsch connector and runs on 12V and 24V systems.

What is the difference between the marine and standard 10 inch bars?

Same LEDs and optics. The marine bars use a white powder-coated housing and are sold with marine mounting options; every bar is IP69K sealed for saltwater and pressure washdown.

What warranty comes with a 10 inch light bar?

Every 10 inch Black Oak LED light bar in this collection is covered by a Lifetime Limited Warranty. See each product page for the terms.

Other sizes: 6 inch light bars, 20 inch light bars, or every size and type in LED light bars. Designed and engineered in Sarasota, Florida.
