20 Inch Marine Series Curved Double Row LED Light Bar – Pro Series 3.0 - Unmatched Power. Proven Performance.
When you hit the water, only purpose-built marine lighting will keep you safe, visible, and confident after dark. The 20-inch Marine Series Curved Double Row LED Light Bar – Pro Series 3.0 delivers serious marine-grade performance in a compact footprint, engineered to withstand salt spray, humidity, vibration, and heavy washdowns.
Our most popular setup—the 5-watt high-output version with a Combo beam—offers maximum brightness and real-world versatility, combining a focused center spot for distance with wide flood optics for confident peripheral visibility when docking, navigating channels, or fishing at night.
Features
-
Lifetime Warranty
-
IP69K-Rated Housing – Fully sealed against salt, spray, pressure washing, and sun exposure
-
Premium CREE® and OSRAM® LED Chips – Engineered for maximum output and longevity
-
316 Stainless Steel Mounting Brackets – Marine-grade corrosion resistance
-
Ceramic-Coated Finish – Enhanced UV stability and corrosion protection
-
Military-Grade Breather – Equalizes pressure and prevents internal moisture buildup
-
Premium Lexan® Lens – Designed to resist fading, hazing, and yellowing over time
In the Box
- (1) LED Light Bar
- Stainless Mounting Brackets and Hardware
- Complete Wiring Harness
Premium Lexan Lens + IP69K Sealed Housing
Each light is built with an optical-grade Lexan lens—twice as strong as glass and engineered to resist fading or yellowing—paired with an IP69K-rated housing that blocks out salt, spray, sun, and high-pressure water. The result is a crystal-clear, fully sealed system designed to perform for years in the harshest marine or off-road environments.
Premium OSRAM® LEDs
High-efficiency OSRAM LEDs deliver exceptional brightness, clarity, and long-term reliability—engineered for demanding marine use and sustained high-output performance.
Complete Wiring Harness Included
Every light bar comes ready to install with a pre-terminated 12-gauge wiring harness, inline fuse, relay, and switch — plus heavy-duty stainless mounting brackets for a secure, professional-grade setup right out of the box.
Ceramic-Coated, Hydrex-Sealed Construction
Finished with a corrosion-resistant ceramic coating and sealed with our Hydrex gasket system for true IP69K performance. 316 stainless bolt-in mounts provide unmatched strength and durability in saltwater or off-road environments.
Precision Beam Patterns
Choose from spot, flood, or combo configurations for the perfect lighting spread. Our advanced reflector design ensures maximum throw distance and balanced side illumination for total visibility in any situation. Pro Tip: Combo is usually the best choice — it gives you the best of both worlds, with the spot pattern in the center for distance and the flood pattern on the ends for wide coverage.
Lifetime Warranty
Enjoy complete peace of mind knowing your light is backed by our industry-leading lifetime warranty. We stand behind every product we build — if it ever fails due to workmanship or materials, we’ll repair or replace it, guaranteed.
| Feature | 5 Watt | 3 Watt |
|---|---|---|
| Power & Performance | ||
| Total Wattage | 200 | 120 |
| Total Amp Draw | 8.4 | 8.1 |
| Operating Voltage | 12-30V DC | 12-30V DC |
| Raw Lumens | 26,400 | 14,900 |
| Color Temperature | 6,000 | 6,000 |
| LED Diode Qty | 40 | 40 |
| LED Chip | Osram | Osram |
| Beam Pattern | Combo, Spot, Flood | Combo, Spot, Flood |
| Beam Angle | Both - Combo 15° - Spot 45° - Flood |
Both - Combo 15° - Spot 45° - Flood |
| Mode | On/Off | On/Off |
| Dimmable? | Yes! (Separate dimmer module Required, NOT included) | Yes! (Separate dimmer module Required, NOT included) |
| Durability & Lifespan | ||
| Life Expectancy | 50,000 Hours | 50,000 Hours |
| Operating Temp | -40° to 145° F -40° to 62° C |
-40° to 145° F -40° to 62° C |
| Waterproof Rating | IP69K | IP69K |
| Warranty | Limited Lifetime | Limited Lifetime |
| Guarantee | 30 Day Money Back | 31 Day Money Back |
| Wiring & Installation | ||
| Cord Lead From Light | 16" | 16" |
| Wire Harness Included? | Yes | Yes |
| Wire Harness Length | 12' | 12' |
| Wire Gauge | 14 | 14 |
| Fuse Size | 10 Amp | 10 Amp |
| Connector Type | 2 Pin Deutsch | 2 Pin Deutsch |
| General | ||
| Weight | 6.3 Lbs | 6.3 Lbs |
| SKU - Combo | 20CCM-50S | 20CCM-D30S |
| SKU - Spot | 20SCM-50S | 20SCM-D30S |
| SKU - Flood | 20FCM-50S | 20FCM-D30S |
Download Instructions Here.
Frequently Asked Questions
Q: Should I choose the 3-watt or 5-watt version?
A: The 5-watt version is our most popular option, delivering significantly more brightness and reach for night navigation and offshore use. The 3-watt version is ideal for lower-power setups or close-range applications.
Q: What makes the Marine Series light bar different from standard off-road light bars?
A: The Marine Series is specifically engineered for harsh marine environments. It features corrosion-resistant hardware, a fully sealed housing, and a marine-rated waterproof design to withstand saltwater spray, humidity, vibration, and long-term exposure on the water.
Q: What beam patterns are available, and how do I choose the right one?
A: This light bar is available in Spot, Flood, and Combo beam patterns. Spot beams project light farther downrange for navigation and high-speed visibility, Flood beams provide wide coverage for close-range illumination, and Combo beams offer a balanced mix of both for all-around marine use.
Q: Is this light bar suitable for T-tops, hardtops, or overhead mounting?
A: Yes. The 20-inch Marine Series light bar is commonly mounted on T-tops, hardtops, radar arches, and other overhead structures. Its mounting system allows for precise adjustment to minimize glare and optimize beam direction.
Q: How waterproof is the Marine Series light bar?
A: The Marine Series carries an IP69K waterproof rating, meaning it’s fully sealed against dust and can withstand high-pressure water spray. It’s built to perform reliably in heavy rain, rough seas, washdowns, and wet marine conditions.
Q: Will this light bar cause glare on my bow or deck?
A: Proper mounting and aiming are key. We recommend temporarily powering the light during installation to fine-tune the angle and reduce or eliminate bow glare. Slide the light bar back enough on the hardtop to eliminate all bow glare. When aimed correctly, the light provides excellent visibility without unwanted reflection.
Q: What voltage systems is this light bar compatible with?
A: The Marine Series light bar is compatible with 10-30V DC systems, making it suitable for a wide range of boats and marine electrical setups.
Q: Does the light bar come with a wiring harness?
A: Yes. The Marine Series light bar includes a complete wiring harness with fuse, relay, and switch, allowing for straightforward installation right out of the box.
Q: Is this light bar energy efficient?
A: Absolutely. The Marine Series uses high-efficiency LEDs to deliver powerful output while keeping amp draw low — helping protect your battery system during extended use.
Q: Can this light bar be used for night fishing or docking?
A: Yes. The wide, consistent light output makes it ideal for night fishing, docking, loading gear, and general deck illumination, improving safety and visibility after dark.
Q: What warranty does this light bar include?
A: All of the products in our Pro Series 3.0 line is backed by Black Oak LED’s limited lifetime warranty, giving you long-term confidence in performance and durability.
Customers Also Viewed
20 Inch LED Light Bar – Double Row | Spot, Flood, or Combo Optics | Pro Series 3.0 (120W / 200W)
20 Inch LED Light Bar – Single Row | Spot, Flood, or Combo Optics | Pro Series 3.0 (60W / 100W)
- Reviews
- Questions
United StatesFantastic!
Simply put, this a fantastic light by a fantastic company!! I only use Black Oak LED lights on my vessel assistance towboats and they hold up in all of the conditions that we throw at them. From freezing rain and snow to summer heat, these lights preform flawlessly! Every purchase I have made through Black Oak LED has been a smooth transaction with fast shipping to boot! Thank you again to Black Oak for your outstanding products. Looking forward to many more of your products as our fleet continues to grow.
United StatesI couldn't believe how bright this light bar is
When I first turned on my Black Oak light bar I couldn't believe how bright it was especially in the dark I use my light bar early in the morning when it's still dark and we're heading out fishing it makes it easier to navigate the narrow creeks until we get out to open water.
United StatesGreat for night runs!

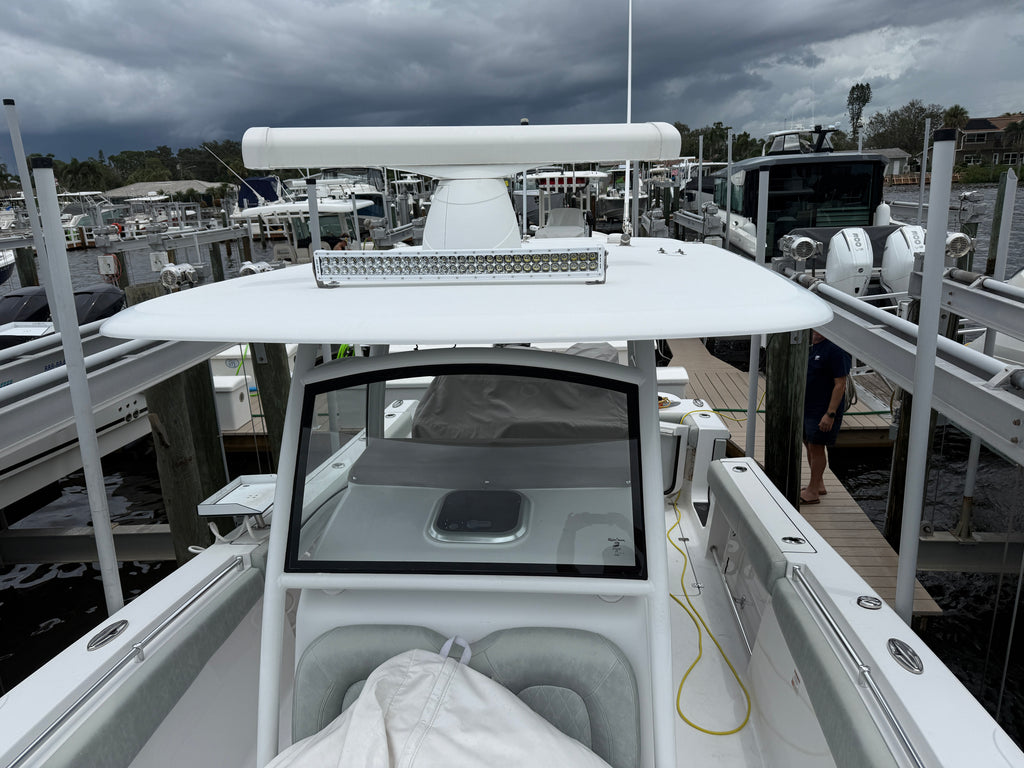

The light fully met my expectations! I have to run a lot at night to get to the tuna grounds. I have to navigate some narrow back bay channels to get out the inlet. The light works beautifully and allowed me to see all the navigation buoys and also lit up the ocean in from of me to help spot anything I could potentially hit while running offshore in the dark. Including some photos of the install.
