Fathom LED Underwater Light (FL24)
Fathom LED Underwater Light (FL24)
Sale price Price: $995.00 USD & Free Shipping
You Save: $0.00 USD
Select Popular Add Ons
Couldn't load pickup availability
Black Oak Marine · Fathom Series Flagship
Fathom LED Underwater Light
Model FL24 · Surface Mount
Twenty-four LEDs and 12,000 raw lumens — the largest output in the Fathom Series, rated for vessels up to 150 feet and still installed through a single 0.7-inch hole.
12,000Raw Lumens 120WTotal Draw 24LEDs 150 ftMax Vessel
2-Year Warranty · 30-Day Money Back · Free Shipping
AB2 Bronze Milled Body
5.12″ × 0.7″ Diameter × Profile
12V / 24V 10A / 5A
IP69K Sealed & Rated
Overview
The flagship of the Fathom Series
The FL24 is the largest light we build for below the waterline: a 24-LED array producing 12,000 raw lumens at 120 watts, behind the same 65° Hydro Block optic that keeps the beam in the water instead of scattering it at the surface. It's rated for vessels up to 150 feet — sportfish, motor yachts, and anything where a pair of smaller fixtures simply won't cover the water behind the boat. Available in White, Deep Blue, dual-color Blue/White, and RGB color-changing.
Why the flagship exists
Coverage you can't get from a smaller fixture
Past a certain hull length, adding more small lights stops working — you end up with bright patches and dark water between them. The FL24 solves it with output, not quantity.

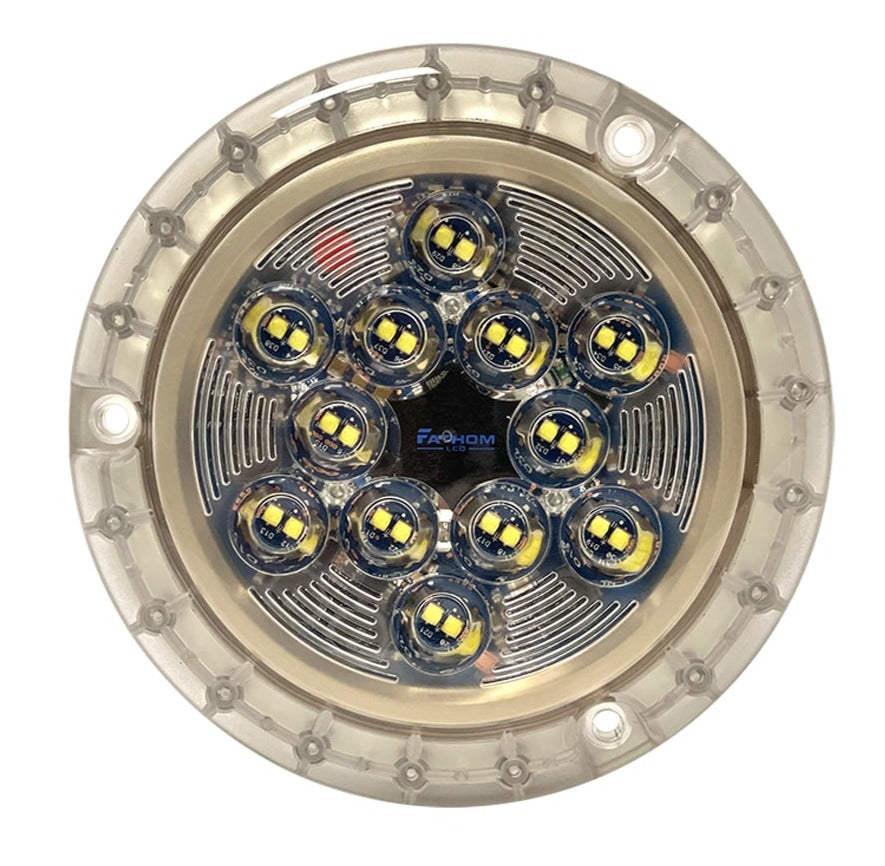

0124-LED Array, 12,000 Lumens
Three times the diode count of the FL6 and 50% more than the FL12, driven at 120 watts. One FL24 covers water that would otherwise need multiple fixtures and multiple holes in the hull.
02One 0.7″ Hole
All that output still mounts on the surface. The only penetration is a 0.7-inch pass-through for the wire, plus three screws — no large thru-hull cutout, no fairing block, no yard bill.
03Bronze, Sealed to IP69K
A milled AB2 bronze body carries 120 watts of heat into the water, and IP68 / IP69 / IP69K ratings plus reverse polarity protection and thermal rollback keep the electronics alive in salt.
Plan the circuit first: the FL24 draws 10A at 12V (5A at 24V). That's a dedicated, properly fused circuit per light on a 12V system — worth confirming with your installer before ordering a pair.
Output
12,000 raw lumens, 24 LEDs, one fixture
The most light the Fathom Series puts into the water. Enough to hold bait against current, light a full transom wash on a big hull, or run a tournament cockpit through the night.
24 LEDs Per Fixture 120 Watts 10A @ 12V · 5A @ 24V Up to 150 ft Recommended Vessel
Four color options
Choose your color

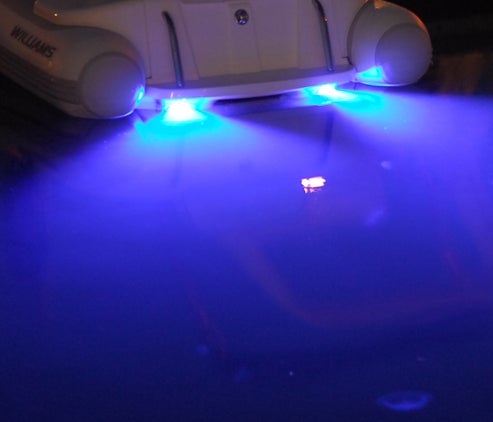

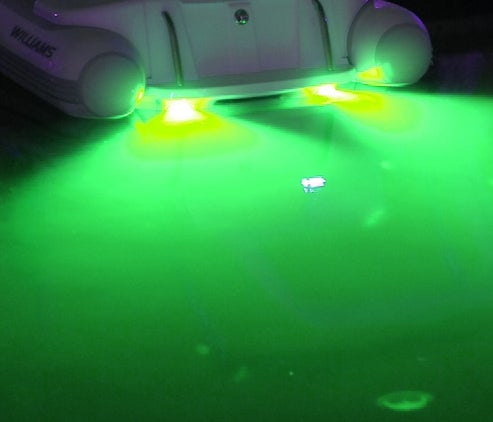

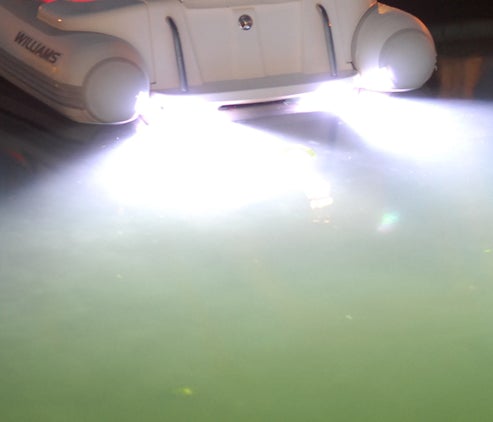

Each version runs its own dedicated LED array. White renders true color on bait and structure, deep blue reaches farthest through open water, and the dual-color and RGB fixtures carry multiple arrays behind one lens.
WhiteTrue color, working light Deep BlueMaximum reach offshore Blue / WhiteBoth colors, one fixture RGBFull color spectrumSwitching colors: no controller and no extra wiring on any version. Power the light from an ordinary on/off switch — flick it off and straight back on and it steps to the next color, then keeps cycling. That applies to both the Blue/White and the full-spectrum RGB fixtures.
Fewer lights, fewer holes
On a large hull the FL24 lets you hit full coverage with a pair on the transom where smaller fixtures would need four or six — less wiring, fewer penetrations, less current in total. Mount them on the transom, down the sides, or above the waterline for accent light.
5.12 inches across, 0.7 inches deep
The FL24 is wider than the FL6 and FL12 to fit the bigger array, but no thicker — it still sits nearly flush to the hull at 0.7″ and weighs just 1.2 lb. Surface mount, one cable entry hole, three stainless screws, hardware included.
Applications
Built for bigger water
Sportfish & Tournament Light a full cockpit spread Bait Lighting Hold bait against current Bow Fishing Reach into deeper water Wake Lighting Full-width transom wash Dock & Marina In or out of the water Yacht Accent Hull glow at anchorSpecifications
Full technical specs
Tap any group to expand.
Power & Output
Total Wattage120W Amp Draw10A @ 12V | 5A @ 24V Operating Voltage12V / 24V DC Raw Lumens12,000 LED Quantity24 Beam Angle65° — Hydro Block lens Colors AvailableWhite, Deep Blue, Blue/White, RGB ControlOn/off switch — quick off/on cycles color on Blue/White and RGBHousing & Dimensions

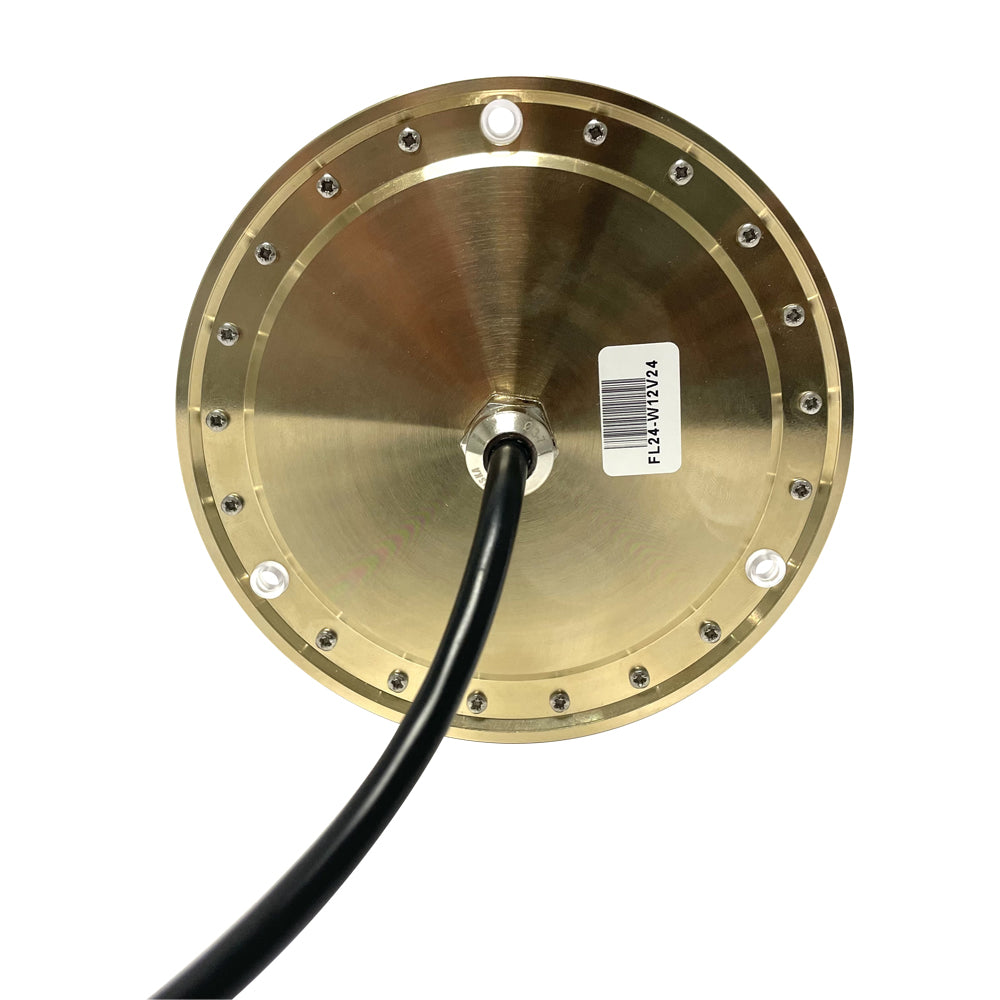

Body MaterialMilled AB2 Bronze Fixture Diameter5.12″ Fixture Profile0.7″ Weight1.2 lb Mount TypeSurface mount — transom, side, or hull InstallOne 0.7″ cable entry hole, 3 screwsDurability & Environment
Waterproof RatingIP68 / IP69 / IP69K ProtectionReverse polarity + active thermal rollback UseSuitable in and out of water Life Expectancy50,000+ hours Recommended VesselUp to 150 ftWarranty & Support
Warranty2 Years Guarantee30-Day Money Back SupportUS-basedModel Numbers
Deep BlueFL24 WhiteFL25 Blue / WhiteFL26 RGBFL27In the box
What ships with it

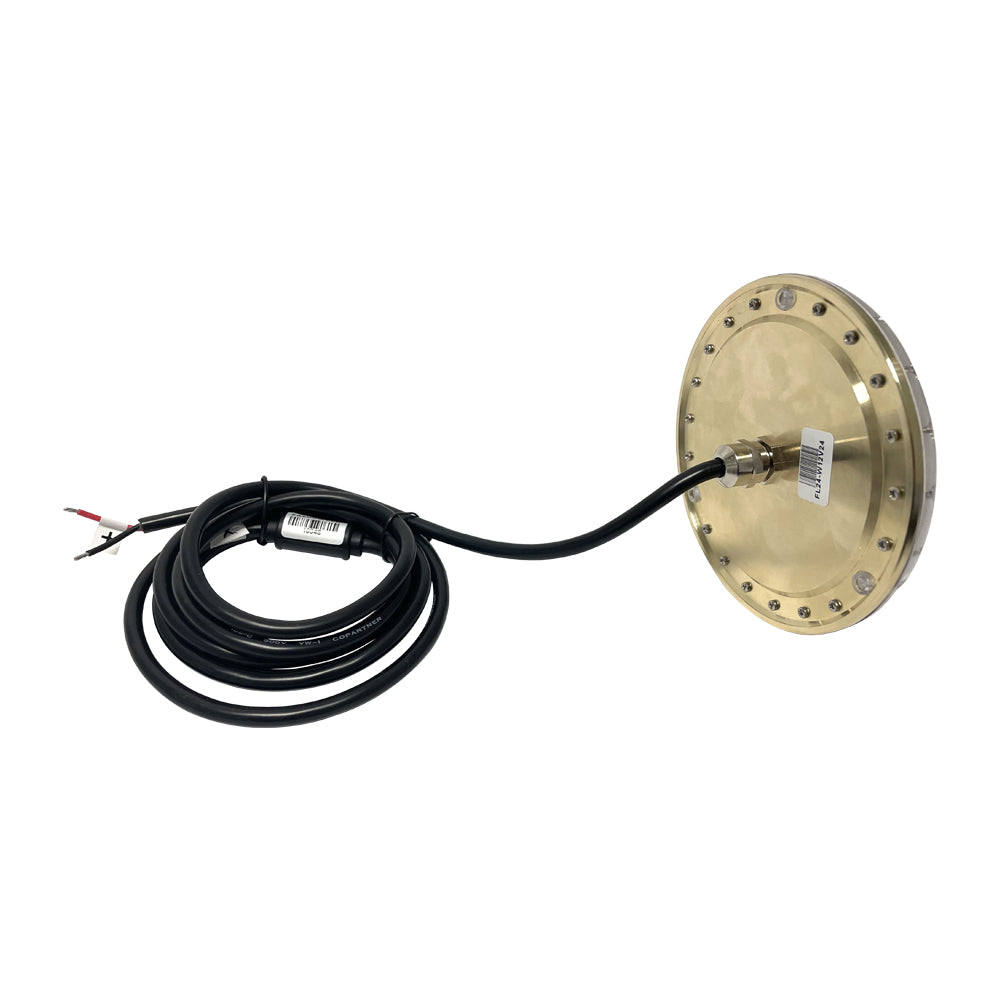

(1) Fathom LED Underwater Light (FL24) Milled AB2 bronze, spliced pigtail lead (1) Stainless Steel Screw Kit Three mounting screwsWiring note: the FL24 ships with a spliced pigtail and needs a harness and switch to operate — neither is included. At 10A per light on 12V this is the highest-draw fixture in the series, so size wire and fusing for the total load before you install.
FAQ
Questions, answered
FL6, FL12, or FL24 — which do I need?
It comes down to hull size and how much water you're trying to light. The FL6 gives 4,100 lumens from 6 LEDs (40W) and the FL12 gives 8,000 from 12 LEDs (55W), both rated to 65 feet on a 4.3″ body. The FL24 is the flagship: 12,000 lumens from 24 LEDs at 120W on a 5.12″ body, rated to 150 feet. Choose the FL24 for large hulls, serious fishing programs, or anywhere you want maximum coverage from the fewest fixtures.
How do I change colors on the RGB or Blue/White?
With the switch that powers it. Flick the switch off and immediately back on and the light advances to the next color, then continues cycling. No controller, no second circuit, no extra wiring — that's true for both the dual-color Blue/White and the full-spectrum RGB.
What kind of circuit does it need?
Each FL24 pulls 10 amps at 12V, or 5 amps at 24V. Wire and fuse each light for its own draw, and size the total for every fixture on the circuit. If you're running a pair on a 12V system, that's 20 amps — plan the harness accordingly, or step up to 24V where available.
How do I know these lights are high quality?
IP68, IP69, and IP69K are pass/fail test standards — water ingress, temperature, pressure, and brute force — and the FL24 carries all three. The body is milled from solid AB2 bronze, the alloy family used for propellers and thru-hull fittings.
Do the underwater lights come with a harness?
No. Each light has a spliced pigtail and needs wiring and a switch to be operational. Harnesses and switches are available as add-ons.
Does it need a large hole in the hull?
No. Despite the output, the FL24 is a surface-mount fixture. The only penetration is a 0.7-inch pass-through for the wire, plus three mounting screws — no thru-hull cutout and no fairing block.
Can I run it out of the water?
Yes. The FL24 is rated for use in and out of the water. Active thermal rollback protects the array when there's no water to carry heat away — worth knowing on a 120-watt fixture.
What does the warranty cover?
If a light fails from workmanship or material defect, send it back and we'll verify it. Once confirmed, Black Oak LED will repair or replace it free of charge. The FL24 carries a 2-year warranty and a 30-day money-back guarantee.
