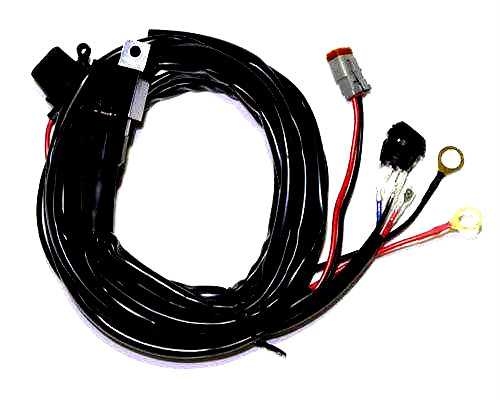

Collection: Professional LED Light Bar Wiring Harness Relay Kits

---

Don't let cheap wiring burn down your rig. Military-grade wiring harness relay kits with proper 10AWG-14AWG copper wire for maximum safety and performance.

Professional LED lighting requires professional wiring. Black Oak LED wiring harness relay kits deliver military-grade reliability for trucks, boats, ATVs, and commercial vehicles. Each complete power kit includes heavy-duty relay, inline fuse holder, waterproof switch, and properly sized wire. Compatible with all Black Oak LED Pro Series 3.0 light bars, our universal wiring harnesses work with both 12V and 24V electrical systems.

The Safety Reality: Your Light Bar Is Only as Reliable as the Wire Powering It

Generic Amazon and eBay wiring kits use 18AWG or 20AWG wire dressed up in thick insulation jackets. The heavy plastic coating creates the illusion of substantial wire, but inside lurks conductor barely thicker than a coat hanger.

The Problem: Cheap Harnesses Create Fire Hazards

Voltage drop dims your lights. Undersized wire creates resistance that bleeds voltage before it reaches your light bar. A 50-inch bar rated for 55,000 lumens might only produce 35,000 lumens because voltage drops from 13.8V to 11.2V at the light.

Heat buildup creates fire risk. That missing voltage converts to heat in the wire insulation. Over time, the plastic breaks down, cracks, and exposes bare conductor. One contact with a metal body panel completes the circuit to ground. Best case: blown fuse. Worst case: electrical fire.

Connectors melt under load. Thin wire pairs with cheap pin terminals that can't handle sustained amperage. The plastic connector housings soften, pins lose contact pressure, and heat accelerates until the connector melts.

The Solution: Military-Grade Components

Black Oak LED wiring harness relay kits use true-specification copper wire properly sized for LED light bar amperage requirements. Our 10AWG standard wire handles 30 amps continuous without voltage drop over typical 10-15 foot runs.

Key Features:

• 40-amp continuous, 60-amp surge relays protect your dashboard switch
• Waterproof Deutsch DT connectors with gold-plated pins resist corrosion
• Properly rated fusing matched precisely to wire gauge and expected load
• Never under-size your fuse (blows unnecessarily) or over-size your fuse (fails to protect wire)

Light Bar Wiring Harness Selector: Which Relay Kit Do You Need?

Understanding connector types prevents ordering the wrong wiring harness for your lights. Black Oak LED uses three main connector systems, each engineered for specific power requirements.

Standard Deutsch DT Connectors (Grey/Orange Housing)

Power Rating: Up to 150 watts (12-13 amps at 12V)
Applications: LED pods, single-row light bars up to 30 inches
Wire Gauge: 14AWG standard

The DT connector represents the industry standard for waterproof automotive and marine electrical connections. Silicone seals around each pin achieve IP67 waterproof rating, allowing temporary submersion without water intrusion.

Most LED light pods and compact single-row light bars use DT connectors. The pins handle 7.5 amps each in a 2-pin configuration, providing 15-amp total capacity with safety margin.

When to Choose DT: Light bars 30 inches or smaller in single-row configuration, or pods rated under 100 watts each.

ATP High-Power Connectors (Large 2-Pin)

Power Rating: 200-400 watts (17-33 amps at 12V)
Applications: Double-row light bars 40-50 inches, high-output marine spreader lights
Wire Gauge: 10AWG standard

ATP connectors feature larger pins and heavier-duty housings designed for sustained high-amperage loads, allowing safe operation of double-row LED light bars drawing 300+ watts.

ATP connector housings use high-temperature nylon that maintains structural integrity when carrying 30 amps for hours. The larger pins provide more contact surface area, reducing resistance and heat generation.

When to Choose ATP: 40-inch or 50-inch double-row light bars, or running multiple high-power pods through one harness.

Multi-Output Distribution Harnesses

2-Piece Connect Cables: Wire two lights to one switch and relay

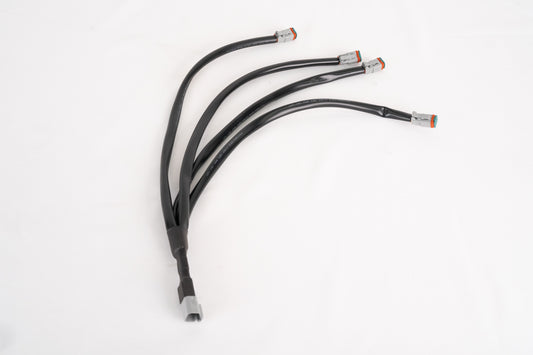

4-Piece Connect Cables: Wire four lights to one switch with proper load distribution

Rather than running four separate harnesses from the battery, multi-output distribution systems use one main power feed that splits cleanly to individual lights. Each output includes its own fuse protection while sharing centralized switch control.

When to Choose Multi-Output: Professional off-road builds with A-pillar pods, bumper lights, and roof bars. Work trucks with front, side, and rear work lights. Prevents switch clutter while maintaining proper fusing.

Pod Light Wiring Harness Configurations

Pod lights require different wiring approaches than full-size light bars. Individual LED light pods under 100 watts use standard single-light wiring harnesses with DT connectors.

Single Pod Wiring: Compact 14AWG wire routes easily through tight spaces while handling the 8-12 amp draw of high-output pods.

Dual Pod Setups: A-pillar pods or bumper-mounted pairs benefit from 2-piece connect cables. One relay and switch control both pods simultaneously while individual fusing protects each light independently.

Quad Pod Installations: The 4-piece distribution harness eliminates four separate battery connections. Each pod maintains its own fuse while sharing centralized switch control.

Installation Best Practices: Mount the relay near the battery to keep high-amperage wire runs short. Route individual pod feeds along frame rails. Protect connections from rock strikes and water spray with sealed DT connectors.

Complete LED Light Bar Wiring Guide & Diagram Reference

Understanding Complete Light Bar Relay Kit Components

Quality wiring harness relay kits include four critical components that protect your electrical system and ensure reliable operation.

Heavy-Duty Relay: Handles high amperage draw (10-30 amps) that would damage a standard switch. Our 40-amp continuous rating provides margin above the requirements of even the largest LED light bars.

Inline Fuse Protection: Waterproof fuse holder with appropriately rated blade fuse prevents electrical fires if a short circuit occurs. Marine-grade sealed fuse holders prevent corrosion.

Waterproof Rocker Switch: IP67-rated construction ensures reliable operation in rain, snow, and marine applications. Red LED indicator shows power status. Rated for 100,000+ activation cycles.

Properly Sized Wire: Tinned copper wire rated for LED light bar amperage requirements from compact pods to 50-inch double row configurations. Tin coating prevents black crusty corrosion in marine and road salt environments.

Wire Gauge and Amperage Requirements

Voltage Drop Considerations: Wire runs over 15 feet require heavier gauge wire. For extended runs on large trucks or marine vessels, upgrade to 8 AWG wire.

12V vs 24V Systems: LED light bars draw half the amperage on 24V systems compared to 12V. Our universal wiring harness relay kits accommodate both voltage ranges.

Light Bar Relay Kit Component Specifications

Light Bar Wiring Diagrams & Installation Schematics

Understanding relay terminal connections prevents installation errors. Standard automotive relays use a numbered terminal system that routes power through the relay contacts when the switch activates the relay coil.

Basic Light Bar Wiring Diagram

How the Circuit Works: When you flip the switch, current flows to relay terminal 86, energizing the relay coil between terminals 85 and 86. The magnetic field pulls the relay contacts closed, connecting terminal 30 (battery power) to terminal 87 (light bar power). The switch only carries 0.5 amps while the relay contacts handle the full light bar load (10-30 amps).

LED Light Bar Wiring Diagram for Dual Light Setup

Running two lights from one switch requires individual relays for each light while sharing switch control.

Terminal Connections for Dual Setup:

• Both Relay Terminal 30 → Battery positive (shared connection)
• Relay 1 Terminal 87 → Light bar 1 positive (with fuse)
• Relay 2 Terminal 87 → Light bar 2 positive (with fuse)
• Both Terminal 86 → Switch output (shared trigger)
• Both Terminal 85 → Chassis ground

This wiring diagram configuration allows independent light failure. If one fuse blows, the second light continues operating.

Off Road Light Wiring Diagram for Trail Use

Trail-Rated Installation Details:

• Relay mounted in sealed engine bay location
• All connections use heat-shrink sealed terminals
• Quick-disconnect harness at firewall for easy light removal
• Protected routing along frame rails away from heat and sharp edges

Mount the relay inside a sealed electronics box to prevent mud and water intrusion. Route wiring harness through factory grommets and use split loom for abrasion protection.

Marine vs Off-Road Wiring: Why Salt Water Demands Different Engineering

Saltwater environments destroy standard automotive wiring within months. Salt acts as an electrolytic catalyst that accelerates oxidation. What takes years on a truck happens in weeks on a boat.

Tinned Copper: The Marine-Grade Difference

Standard copper wire develops black crusty corrosion that increases electrical resistance and eventually causes complete circuit failure. Tinned copper wire features a microscopic tin coating on each strand that prevents oxygen from reaching the copper.

When you cut a wire, standard copper shows orange conductor. Tinned copper appears silver because the tin coating covers the copper completely. In stranded wire, the tin coating on each individual strand prevents corrosion from spreading between strands.

Underwater LED lights and marine spreader lights installed on boats operating in saltwater require tinned copper wire in the entire circuit. Our marine wiring kits use tinned copper throughout.

Marine-Grade Relay Housings

Marine relays feature completely sealed housings with potted internals. The relay contacts and coil sit in epoxy that excludes moisture completely. Even if the housing cracks, the potting material prevents water from reaching electrical components.

Standard inline fuse holders fail when continuously exposed to water spray. Marine fuse holders use double-sealed designs with silicone gaskets that maintain IP69K waterproof ratings even during direct spray from boat washdowns.

Off-Road Light Wiring Harness Applications

Trail riding, rock crawling, and overlanding create unique electrical demands. Off-road light wiring harnesses must withstand vibration, water crossings, mud immersion, and temperature extremes.

Trail Riding Wiring Requirements

Vibration Protection: Deutsch DT connectors include locking wedges that prevent accidental disconnection. Gold-plated pins maintain low resistance contact even after thousands of vibration cycles.

Water Crossing Capability: Sealed DT connectors achieve IP67 rating, allowing temporary submersion during water crossings. After crossing, the connector drains and dries without corrosion damage.

Mud Immersion Protection: Split loom and protective routing prevent mud from abrading wire insulation. Route the wiring harness along the frame rail inside factory protective channels.

Rock Crawling Light Setups

Technical rock crawling requires multiple lighting zones. A-pillar pods illuminate immediate obstacles, bumper lights show the approach angle, and roof bars provide overall scene visibility.

Quad-Light Wiring for Crawling: The 4-piece distribution harness controls four independent pod lights from one switch. Individual fusing ensures one damaged light doesn't affect the others during contact with rocks.

Quick-Disconnect for Competition: Install quick-disconnect DT connectors at the firewall for easy light removal without tools during competition.

Overlanding Electrical Systems

Dual Battery Integration: Overlanding rigs often use dual battery systems. The light bar wiring harness connects to the auxiliary battery to prevent draining the starting battery.

Camp Lighting Applications: The same wiring harness that powers trail lights can illuminate the campsite when parked. The relay isolates the lights from the starting battery, allowing extended use without risking a dead battery.

Professional Installation Applications

Off-Road and Recreational Vehicles

Trucks, Jeeps, and SUVs benefit from complete wiring harness relay kits designed for harsh off-road conditions. Our harnesses integrate cleanly with factory electrical systems without cutting or splicing factory wiring.

Marine and Watercraft Applications

Boats face the harshest electrical environment with constant moisture, salt spray, and vibration. Marine-grade wiring harnesses use tinned copper wire that resists corrosion. Multiple LED light bars for deck work and navigation require organized wiring.

Commercial and Emergency Vehicles

Work trucks and emergency responders need wiring systems that function reliably under demanding conditions. 24V compatibility serves commercial truck fleets, while heavy-duty relays handle constant on-off cycling of work vehicle lights.

Accent Light & Rock Light Wiring: Managing Multiple Low-Power Circuits

Rock lights draw only 1-3 amps each, making relays unnecessary. However, wiring eight rock lights creates wire management challenges without proper distribution systems.

A typical 12-watt rock light draws 1 amp at 12V. Eight rock lights draw 8 amps total, well within dashboard switch capacity. The solution uses distribution blocks that split one power feed into 4-8 individual outputs. The main feed carries 8 amps through 14AWG wire, then splits into eight 1-amp circuits using 18AWG wire to each rock light.

Professional rock light installations route one main power feed along the frame rail, then tap individual lights from distribution points near each wheel well. This creates a clean harness with minimal exposed wiring.

Complete System Recommendations

Basic Single Light Package

What's Included: Single light wiring harness with relay and switch, DT-style connectors, 10-foot wire length, inline fuse holder with 30A blade fuse, mounting hardware

Best for: Single roof-mounted light bar on trucks, SUVs, or Jeeps. Ideal for first-time LED lighting installations.

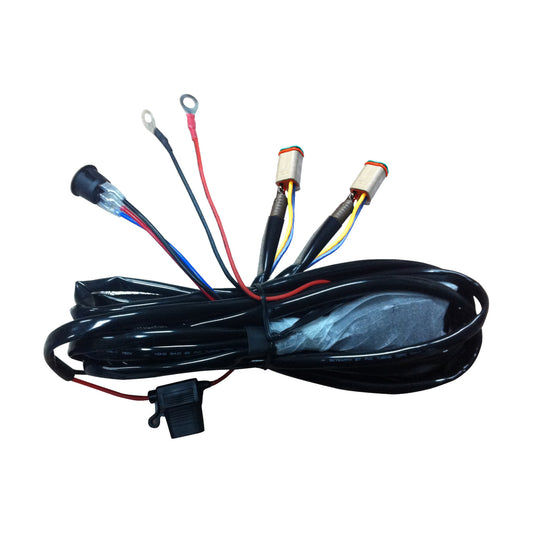

Dual Zone Lighting Package

What's Included: Dual light wiring harness with two relays, shared rocker switch, extended wire routing, individual fusing for each light zone, waterproof relay housings

Best for: Trucks with both bumper and roof lights, UTVs with front and rear lighting, boats with bow and stern lights.

Professional Four-Light Package

What's Included: Quad light wiring harness with four relays, single switch control, heavy-duty relay board mounting, four individual fuse holders, complete wire management solutions

Best for: Work trucks with comprehensive lighting, emergency vehicles, serious off-road builds requiring A-pillar pods, bumper lights, roof bar, and rear lighting.

Marine-Grade System Package

What's Included: Marine-spec wiring harness with tinned copper, waterproof relay with sealed housing, IP69K-rated rocker switch, stainless steel mounting hardware, extended heat-shrink sealed connections

Best for: Saltwater fishing boats, offshore vessels, any marine application requiring maximum corrosion resistance.

Why Choose Black Oak LED Wiring Harness Relay Kits

Superior Components vs Generic Alternatives

Military-Grade Relay Construction: Weather-resistant relay housings feature brass terminals that maintain connection integrity through temperature swings from -40°F to 140°F. Relay contacts handle full 30-amp continuous rating without degradation.

Tinned Copper Wire: Prevents corrosion from penetrating the conductor, maintaining full electrical performance for years. Critical in marine environments and areas with road salt.

Properly Rated Fusing: Match fuse ratings precisely to wire gauge and expected load, providing protection without nuisance trips.

Pro Series 3.0 Integration and Compatibility

Our wiring harness relay kits connect seamlessly with all Black Oak LED Pro Series 3.0 light bars using standardized DT connectors. No wire cutting or splicing required. The entire installation takes 30-45 minutes with basic hand tools.

Universal Compatibility: Our harnesses work with most aftermarket LED lighting using standard DT-style connectors.

12V-24V Automatic Detection: The relay and switch components function correctly on both 12V passenger vehicle systems and 24V commercial truck systems.

Technical Specifications

Operating Voltage Range: 10-30V DC accommodates various vehicle electrical systems including fluctuating charging system voltage.

Contact Current Rating: 40-amp continuous, 60-amp surge capacity. Exceeds the requirements of the largest Black Oak LED light bars.

Voltage Drop: Less than 0.3V at 30 amps over 10-foot wire run. Minimal voltage drop ensures full brightness.

Fuse Protection: Quick-blow automotive blade fuses (30A standard) provide fast protection if short circuit occurs.

Wire Insulation: Automotive-grade PVC rated for -40°F to 185°F continuous operation.

Connector Type: DT-style waterproof connectors with locking tabs. Gold-plated pins maintain low contact resistance.

Relay Housing: Glass-filled nylon case withstands vibration and impact. Sealed design prevents moisture entry.

Switch Design: Illuminated rocker switch with rubber seal. Red LED indicates power status.

Light Bar Wiring Diagram & Technical Installation FAQ

What gauge wire do I need for a 50-inch light bar?

A 50-inch double-row light bar draws 300 watts (25 amps at 12V). For wire runs up to 15 feet, use 10AWG minimum. For runs exceeding 15 feet, upgrade to 8AWG to prevent voltage drop.

How do I read a light bar wiring diagram?

Light bar wiring diagrams show relay terminal connections using standard automotive numbering. Terminal 30 connects to battery positive, terminal 87 connects to light bar positive, terminal 85 grounds the relay coil, and terminal 86 connects to your switch.

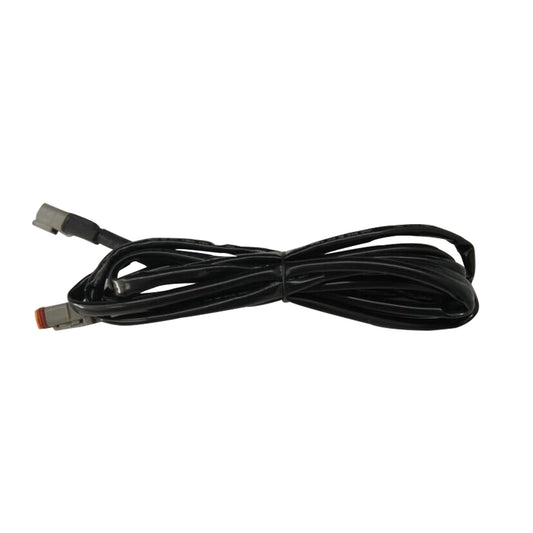

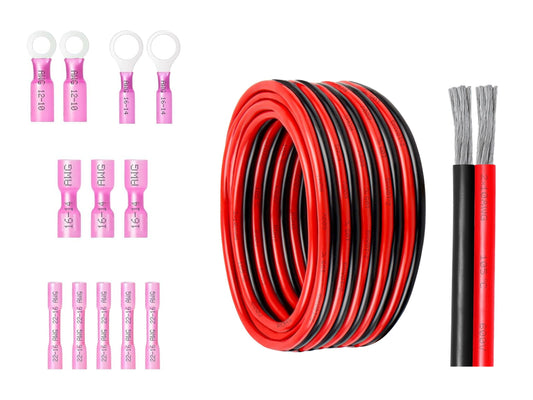

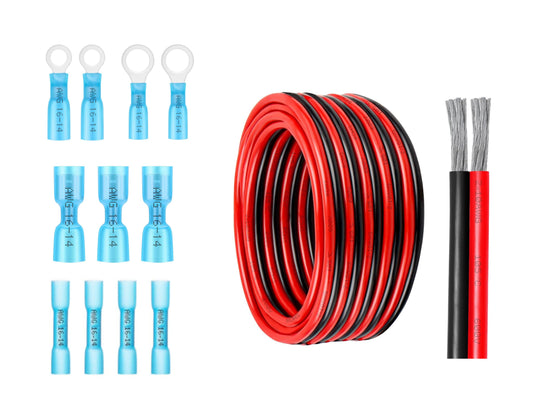

Can I extend my wiring harness for longer runs?

Yes, but maintain wire gauge throughout the extension. If your original wiring harness uses 10AWG wire, the extension must also use 10AWG. Never use household wire nuts or electrical tape for outdoor connections. Use only heat-shrink solder connections or waterproof crimp connectors.

What is a DT connector and why does it matter?

DT connectors represent the industry standard for waterproof automotive electrical connections. These connectors feature individual pin seals and a wedge lock mechanism that prevents accidental disconnection during vibration. The IP67 waterproof rating allows temporary water submersion without causing electrical failure.

Do I need different wire for 24V systems?

Wire gauge requirements decrease on 24V systems because amperage drops by half compared to 12V for the same wattage. A 240-watt light bar draws 20 amps at 12V but only 10 amps at 24V. Our universal wiring harness relay kits use 10AWG wire that works correctly on both voltage systems.

How do I prevent voltage drop on long wire runs?

Use the shortest practical wire route, upgrade wire gauge for runs over 15 feet (10AWG to 8AWG), ensure clean connections with no corrosion, and mount the relay as close to the battery as possible.

What happens if I use too small a fuse?

Undersized fuses blow unnecessarily during the initial inrush current when you first turn on the lights. LED light bars can draw 1.5-2x their steady-state amperage for a fraction of a second during power-up. Properly sized fuses use slow-blow automotive blade fuses rated 1.2-1.5x the continuous amperage.

Where can I find a complete LED light bar wiring diagram?

Complete wiring diagrams show all connections from battery to light bar including relay terminal assignments, fuse placement, switch wiring, and ground connections. Our wiring harness relay kits include installation instructions with detailed diagrams. The basic configuration connects battery positive to relay terminal 30, terminal 87 to light bar positive through a fuse, terminal 85 to ground, and terminal 86 to your switch.

How do I wire multiple LED light bars to one switch?

Multiple light bars require individual relays for each bar but can share one switch. Connect all relay coil triggers (terminal 86) to the switch output. Each relay maintains its own power circuit with individual fusing. Use our 2-piece or 4-piece distribution harnesses for clean multi-light installations.

Complete Your LED Lighting System with Professional Wiring

Black Oak LED wiring harness relay kits eliminate the guesswork. We match wire gauge to light bar wattage, size relays for sustained amperage loads, include properly rated fuses, and use waterproof connectors that maintain integrity through years of exposure.

Need help selecting the right wiring harness configuration? Our technical specialists understand the electrical requirements of different vehicle types, lighting configurations, and environmental conditions. Call 800-348-1287 to discuss wire gauge requirements, connector compatibility, and proper installation practices.

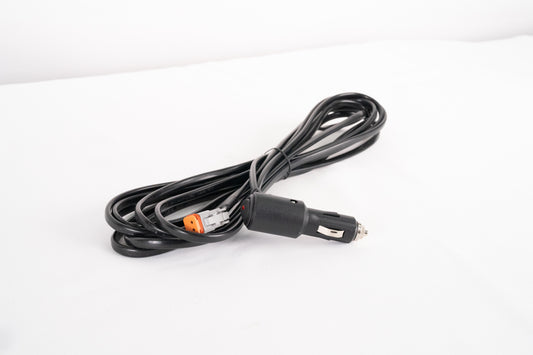

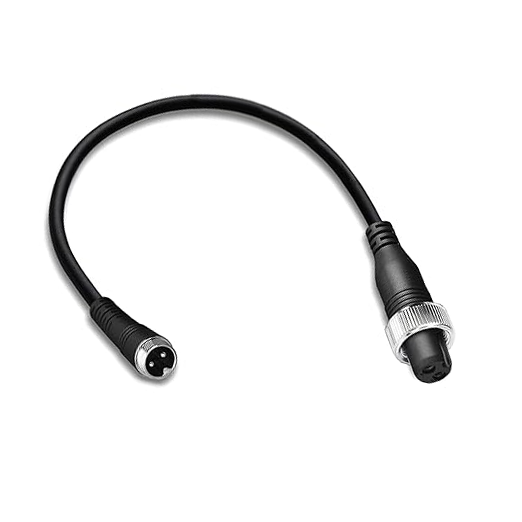

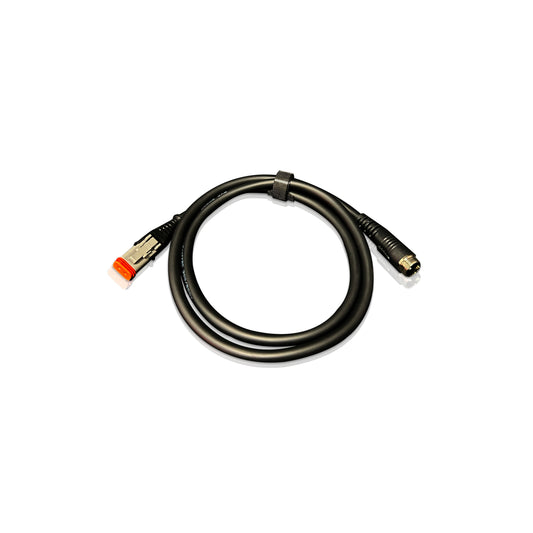

Ready to wire your LED lighting system correctly the first time? Explore our complete selection of wiring harnesses, extension cables, and distribution systems below.

From weekend warriors to professional mariners, Black Oak LED wiring delivers the reliability that matters when darkness falls.
